NCGL (Non colour Galvalume or bare Galvalume AluZinc coating) GL Base

  • Thickness :0.40mm-0.70mm
  • Alu-Zinc coating : Az150 Standard. Az100, Az70 and higher Alu-Zinc coatings optional
  • Coil width : 1200mm
  • Sheet width : 1100mm
  • Effective width : 1050mm
  • Tensile strength : 550 Mpa Standard. 245-345 Mpaoptional
  • Standards met : AST M A792, As2728, Is277, JIS332

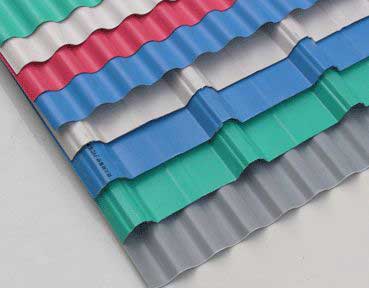

Pre-painted Alu-Zinc Steel Sheet (Galvalume-Base)

Pre-painted Alu-Zinc olloy coated steel sheet (55% Aluminium 43% Zinc 1.6% Silicon)
  • Zinc coating : Az150
  • Coating : Regular modified polyester painting
  • Painting Thickness (Top) : 18-20 microns
  • Painting Thickness (Bottom) : 5-7 microns epoxy. Premier service coat
  • Surface pain reflection : Glossy finish (Optional-Matt finish)
  • Textile Strength : 550 Mpa

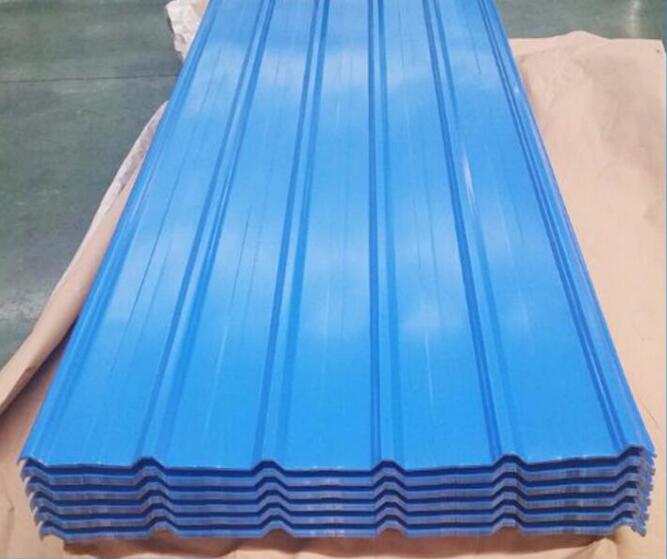

Pre-painted Galvanized Steel Sheet (GI-Base)

  • Zinc coating : Z120
  • Coating : Regular modified polyester painting
  • Painting Thickness (Top) : 18-20 microns
  • Painting Thickness (Bottom) : 5-7 microns epoxy. Premier service coat
  • Surface pain reflection : Glossy finish (Optional-Matt finish)
